I live about 1000 miles away from Ward County, but am going to drive down in March and try and find the land that we own there. We currently have a mineral lease on it, and are wondering what we'll see if anything when we get there? It's described as: "Tracts 1, 2, 3, 31-A and 31-B, such land being a part of the N/4 of section 135, Block 34, H&TC RR Co. Survey, Ward County, Texas"
Anyone know if anything is going on there? I haven't got the first idea what I'm looking at on maps or charts, and I've tried reviewing stuff contained in threads here. There's a couple of things I'm pretty good at, but not this.
Thanks in advance...
Mark
M. R.,
At this time I don't see any activity in the area of Section 135. I see 7 older vertical wells drilled into the Canyon formation back in 1977/78/79 in Section 135. One of these wells(31629) is still producing 2 to 3 barrels per day and the rest have been plugged. Next door to the N/W in Section 144 Cimarex has 4 producing horizontal oil/gas wells(36421, 36416, 36299, 36203) that were drilled in 2012 and 2013.
These 4 wells are all included in the same lease number(43012). Link to Production Data on these 4 Cimarex wells in Section 144:
http://webapps2.rrc.state.tx.us/EWA/specificLeaseQueryAction.do?tab=init&viewType=prodAndTotalDisp&methodToCall=fromGisViewer&pdqSearchArgs.paramValue=|2=12|3=2015|4=11|5=2016|103=43012|6=O|102=08|8=specificLease|204=district|9=dispDetails|10=0
To the S/E in Section 125 are 3 or 4 permitted locations to drill by Anadarko in late 2014 and apparently they were never drilled.

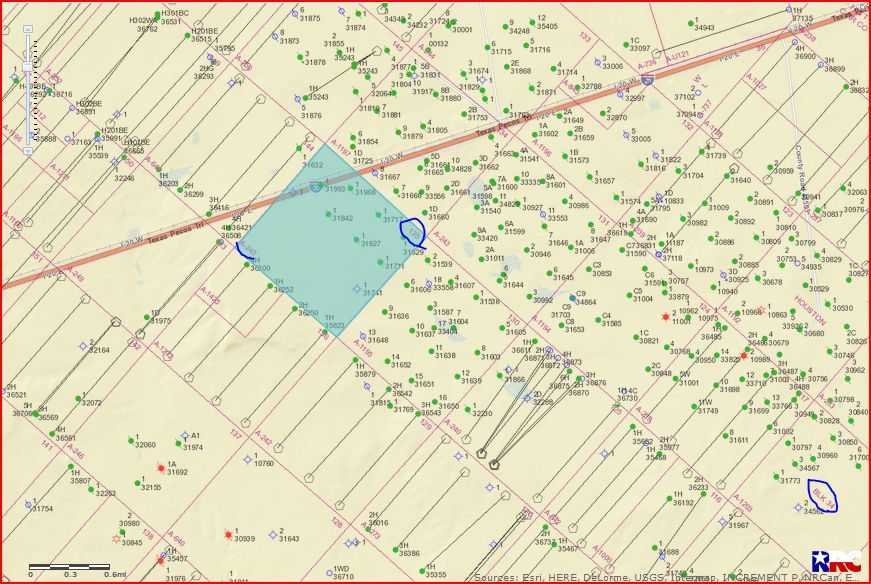

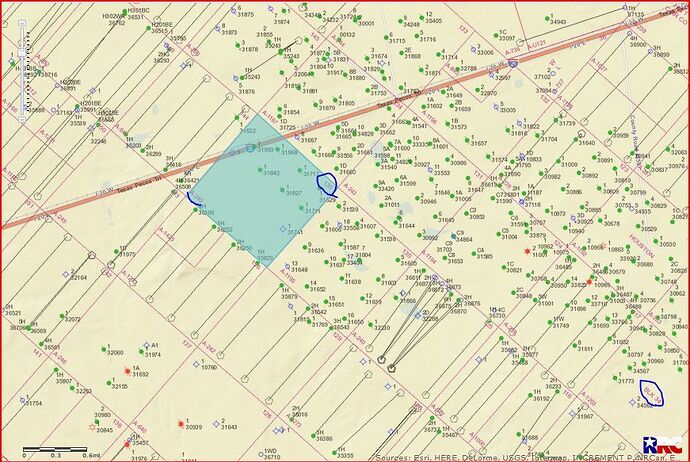

GIS Map of Ward County Section 135/Block 34/A-245 and surrounding area:
CLICK ON MAP TO ENLARGE
Clint Liles
You can follow this link for a google satellite view of section 135 with the corners marked. There is a house on the north side of the highway one mile to the northeast which is where I was born and raised 70 years ago.
//https://maps.googleapis.com/maps/api/staticmap?center=31.48876,-103.25287&size=600x800&maptype=satellite&markers=color:blue%7Clabel:N%7C31.499148,-103.2532177&markers=color:red%7Clabel:W%7C31.487991,-103.264477&markers=color:yellow%7Clabel:E%7C31.4893824,-103.2404891&markers=color:green%7Clabel:S%7C31.478466,-103.251723
The above is a static image, the following will pull up the dynamic map where you can zoom and pan around the area. Pretty much might save you a trip.
//https://www.google.com/maps/@31.499148,-103.2532177,3877m/data=!3m1!1e3
